General
Switch type
Managed
Switch layer L2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Full duplex Y
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Rack mounting Y
Form factor 1U

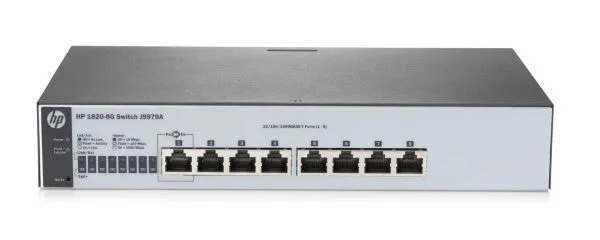

Hewlett Packard Enterprise 1820-8G - Managed - L2 - Gigabit Ethernet (10/100/1000) - Full duplex - Rack mounting - 1U
The HP 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities.

These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

Easy-to-Use, Simple to Deploy and Manage
- The HP 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HP 1820 Switch Series is ideal for organizations that require simplicity.

- The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.

- Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.

- These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

- Some models are of a fan-less design, making them quiet for office deployments

Management features
Switch type
Managed
Switch layer L2
Quality of Service (QoS) support Y
Web-based management Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Power over Ethernet (PoE) N
Data transmission
MAC address table
8000 entries
Switching capacity 16 Gbit/s
Throughput 11.9 Mpps
Latency (10-100 Mbps) 7 µs
Latency (1 Gbps) 2 µs
Jumbo frames support Y
Packet buffer memory 1.5 MB
Network
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
10G support N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Port mirroring Y
Full duplex Y
Flow control support Y
Link aggregation Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Auto-sensing Y
VLAN support Y
Power
Power supply included Y
AC input voltage
100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 12.2 W
Performance
Built-in processor Y
Processor model
ARM Cortex-A9
Processor frequency 400 MHz
Memory type
SDRAM
Internal memory 128 MB
Flash memory 16 MB
Security
DHCP features
DHCP client
IGMP snooping Y
SSH/SSL support Y
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95 %
Storage relative humidity (H-H) 15 - 95 %
Weight & dimensions
Width 254 mm
Depth 159.5 mm
Height 43.9 mm
Weight 820 g
Technical details
Sustainability certificates
ENERGY STAR
